Double Rotor Mixers
Check out some of our latest PHLAUER™ Double Rotor Mixers. Each rotor is an independent mixer, and adding two rotors also creates a dynamic interchange between them. This reduces mix time and makes them ideal for liquid addition. Double rotor mixers efficiently blend different sizes and weights of particles.
Additional Settings
Customize your mixer with features that fit your process.
Stainless Contact 90 cu. ft.
Stainless Contact machine 90 cu. ft. (2550 liters) capacity with liquid addition and Shearmakers, used for animal feed nutriceutical.

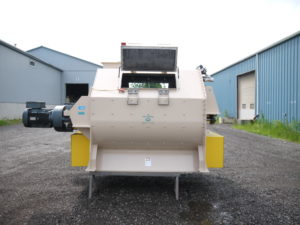

Carbon AR400 60 cu. ft.
Carbon AR400 machine 60 cu. ft. (1700 liters) capacity with Teflon impregnated rotors, used for finish mixing and coating of dairy and horse feeds with molasses, fat, and mould inhibitor. Handles 25–30 tons per hour.
Product Features
Essential features that enhance performance and reliability.
- As little as 30 seconds in most applications.
- Starts under load for consistent and efficient mixing.
- 0.5% standard deviation.
- Cv of 5%.
- Low shear mixing.
- Accurate liquid addition.
- High-volume mixing.
- Examples: coffee beans, ground coffee, cereals, animal feeds, pet food, aqua feed coating, convection drying.
- Comparable in price to single rotor mixers for equivalent volumes.
- Square geometry improves discharge angles, hopper flowability, and cleaning access.
- Discharge options: drop bottom, single port, dual port, end discharge.
- Up to 3 discharges per machine.
- Sizes available: 2 cu. ft. (60 liters) to 600 cu. ft. (17,000 liters).
- Materials: Carbon, Carbon/AR 400 min. Brinell, Stainless Steel Tp 304, Tp 316, SO17400 HT.
